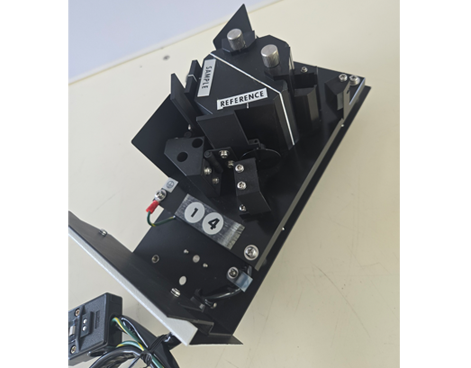

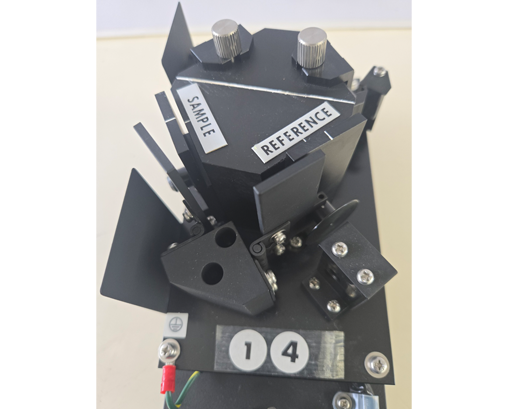

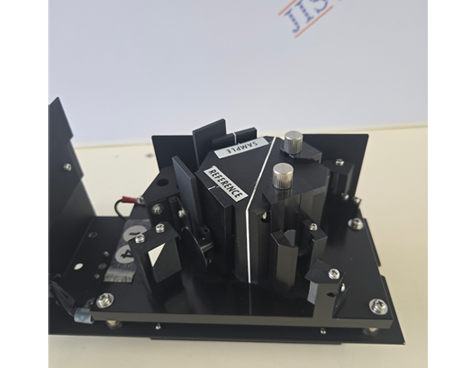

Shimadzu_ISR-240A Integrting Sphere Attachement, 60mm dia, UV-2400/2500, UV-3600 only (P/N 206-23860-91)

This attachment is used for measurement of diffuse, and total and reflectance and measurement of transmittance of liquids and solids.

▶ Wavelength range: 240-800nm.

▶ Integrating sphere: 60mm inner diameter, equipped with a photomultiplier.

▶ Maximum size of reflection sample: 40~70mm wide, 10mm thick or 70~70mm wide, 5mm thick.

▶ Two BaSO4 white plates, two sample holders and BaSO4 powder (500g) are included.

▶ Incident angle: 0 deg
